XX Series
XX Series
Rated Voltage:60VDC
Hold Current:0.05A~3.75A
Max. Current:40A
Temperature Range:-40℃ to 85℃
Features
o Broadest range of Thru-Hole devices available in the industry
o Cured, Flame retardant epoxy, meets UL 94 V-0 requirement
o Available in lead-free version
Hold Current:0.05A~3.75A
Max. Current:40A
Temperature Range:-40℃ to 85℃
Features
o Broadest range of Thru-Hole devices available in the industry
o Cured, Flame retardant epoxy, meets UL 94 V-0 requirement
o Available in lead-free version
Share:
| Part Number | Hold Current | Trip Current | Max. Time to Trip | Max. Current | Rated Voltage | Typ. Power | Resistance | |
|---|---|---|---|---|---|---|---|---|
| IH,A | IT,A | @ 5xIH,s | IMax,A | VMax,VDC | Pd, W | RMIN | R1MAX | |
| XX005 | 0.05 | 0.10 | 5.0 | 40 | 60 | 0.26 | 7.30 | 20.00 |
| XX010 | 0.10 | 0.20 | 4.0 | 40 | 60 | 0.38 | 2.50 | 7.50 |
| XX017 | 0.17 | 0.34 | 3.0 | 40 | 60 | 0.48 | 2.00 | 8.00 |
| XX020 | 0.20 | 0.40 | 2.2 | 40 | 60 | 0.41 | 1.83 | 4.40 |
| XX025 | 0.25 | 0.50 | 2.5 | 40 | 60 | 0.45 | 1.25 | 3.00 |
| XX030 | 0.30 | 0.60 | 3.0 | 40 | 60 | 0.49 | 0.88 | 2.10 |
| XX040 | 0.40 | 0.80 | 3.8 | 40 | 60 | 0.56 | 0.55 | 1.29 |
| XX050 | 0.50 | 1.00 | 4.0 | 40 | 60 | 0.77 | 0.50 | 1.17 |
| XX065 | 0.65 | 1.30 | 5.3 | 40 | 60 | 0.88 | 0.31 | 0.72 |
| XX075 | 0.75 | 1.50 | 6.3 | 40 | 60 | 0.92 | 0.25 | 0.60 |
| XX090 | 0.90 | 1.80 | 7.2 | 40 | 60 | 0.99 | 0.20 | 0.47 |
| XX110 | 1.10 | 2.20 | 8.2 | 40 | 60 | 1.50 | 0.15 | 0.38 |
| XX135 | 1.35 | 2.70 | 9.6 | 40 | 60 | 1.70 | 0.12 | 0.30 |
| XX160 | 1.60 | 3.20 | 11.4 | 40 | 60 | 1.90 | 0.09 | 0.22 |
| XX185 | 1.85 | 3.70 | 12.6 | 40 | 60 | 2.10 | 0.08 | 0.19 |
| XX250 | 2.50 | 5.00 | 15.6 | 40 | 60 | 2.50 | 0.05 | 0.13 |
| XX300 | 3.00 | 6.00 | 19.8 | 40 | 60 | 2.80 | 0.04 | 0.10 |
| XX375 | 3.75 | 7.50 | 24.0 | 40 | 60 | 3.20 | 0.03 | 0.08 |
IH=Hold current-maximum current at which the device will not trip at 23℃ still air.
IT=Trip current-minimum current at which the device will always trip at 23℃ still air.
T trip=Maximum time to trip(s) at assigned current.
IMAX= Maximum fault current device can withstand without damage at rated voltage (V MAX).
VMAX=Maximum voltage device can withstand without damage at its rated current.
PD Typ=Typical power dissipated from device when in tripped state in 23℃ still air environment.
RMIN=Minimum device resistance at 23℃ .
R1MAX=Maximum device resistance at 23℃ , 1 hour after tripping .

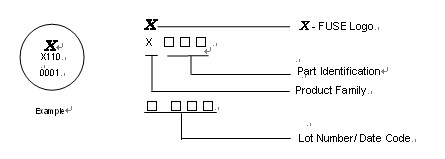

Agency Approval and Environmental Compliance
| Part Number | Fig. | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| Max | Max | Typ | Min | Max | Typ | ||
| XX005 | 1 | 7.4 | 12.7 | 5.1 | 7.6 | 3.1 | 1.1 |
| XX010 | 1 | 7.4 | 12.7 | 5.1 | 7.6 | 3.1 | 1.1 |
| XX017 | 1 | 7.4 | 12.7 | 5.1 | 7.6 | 3.1 | 1.1 |
| XX020 | 1 | 7.4 | 12.7 | 5.1 | 7.6 | 3.1 | 1.1 |
| XX025 | 1 | 7.4 | 12.7 | 5.1 | 7.6 | 3.1 | 1.1 |
| XX030 | 1 | 7.4 | 13.0 | 5.1 | 7.6 | 3.1 | 1.1 |
| XX040 | 1 | 7.6 | 13.5 | 5.1 | 7.6 | 3.1 | 1.1 |
| XX050 | 1 | 7.9 | 13.7 | 5.1 | 7.6 | 3.1 | 1.1 |
| XX065 | 1 | 9.7 | 14.5 | 5.1 | 7.6 | 3.1 | 1.1 |
| XX075 | 1 | 10.4 | 15.2 | 5.1 | 7.6 | 3.1 | 1.1 |
| XX090 | 1 | 11.7 | 15.8 | 5.1 | 7.6 | 3.1 | 1.1 |
| XX110 | 2 | 13.0 | 18.0 | 5.1 | 7.6 | 3.1 | 1.4 |
| XX135 | 2 | 14.5 | 19.6 | 5.1 | 7.6 | 3.1 | 1.4 |
| XX160 | 2 | 16.3 | 21.3 | 5.1 | 7.6 | 3.1 | 1.4 |
| XX185 | 2 | 17.8 | 22.9 | 5.1 | 7.6 | 3.1 | 1.4 |
| XX250 | 2 | 21.3 | 26.4 | 10.2 | 7.6 | 3.1 | 1.4 |
| XX300 | 2 | 24.9 | 30.0 | 10.2 | 7.6 | 3.1 | 1.4 |
| XX375 | 2 | 28.5 | 33.5 | 10.2 | 7.6 | 3.1 | 1.4 |
| Temperature | -40℃ | -20℃ | 0℃ | 23℃ | 30℃ | 40℃ | 50℃ | 60℃ | 70℃ | 85℃ |
|---|---|---|---|---|---|---|---|---|---|---|
| Derating % | 158% | 138% | 119% | 100% | 90% | 81% | 70% | 60% | 50% | 6% |
